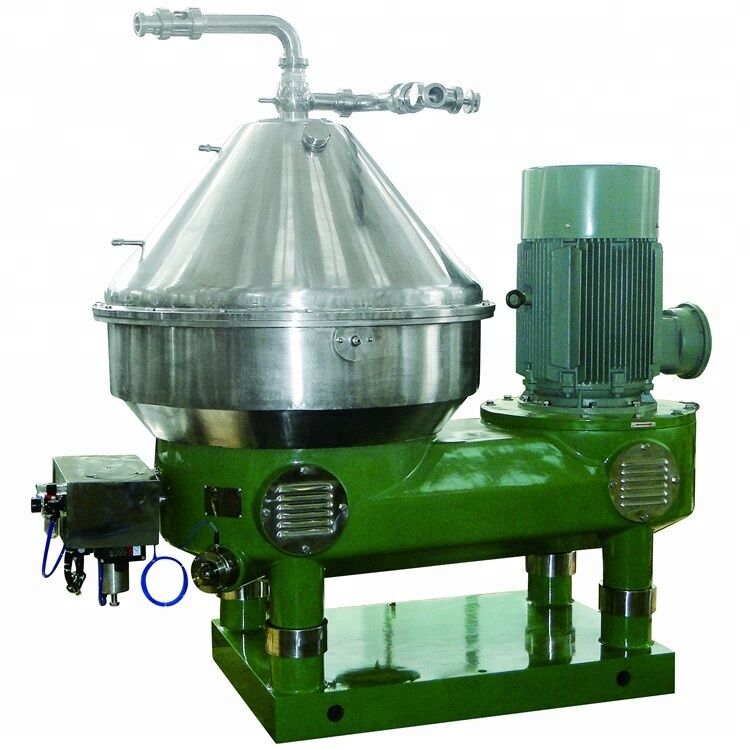

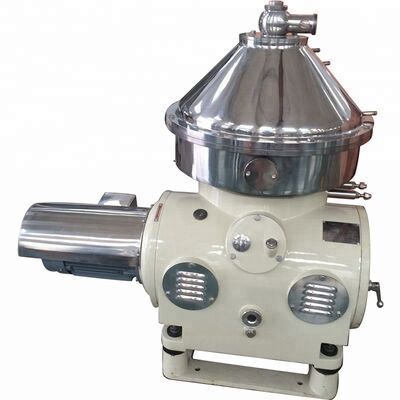

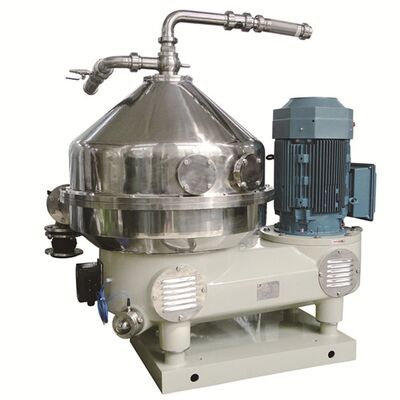

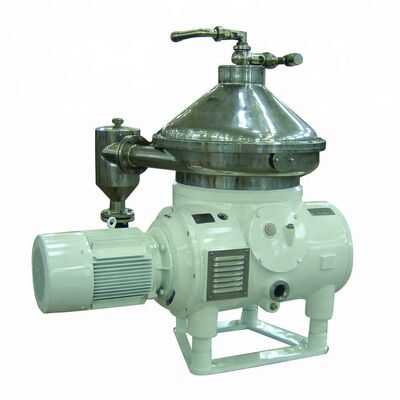

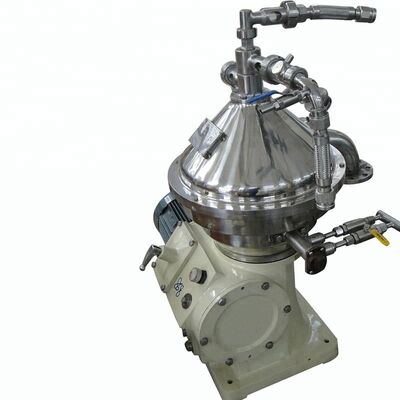

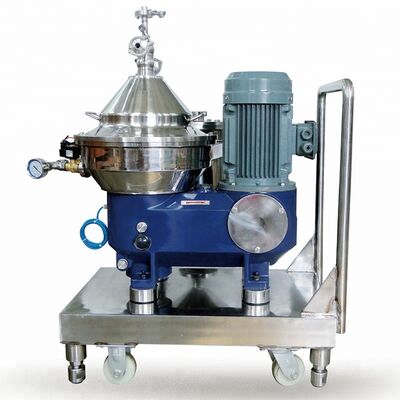

DHN Series Milk Clarify Centrifuge Separator
The DHN series disc separator is a high-speed, airtight, and automatically controlled centrifuge system designed for solid-liquid two-phase separation in beer, milk, pharmaceutical, and other industrial applications.
Product Features & Construction
All components that contact processed materials are manufactured from advanced stainless steel, minimizing corrosion and ensuring compliance with food hygiene standards.
The separated light phase material is discharged through a centripetal pump with maximum output pressure reaching 0.4 MPa. Top-feeding design requires minimal inlet pressure for efficient operation.
DHN Series Technical Specifications
DHN model is applied to dairy clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 MPa |
0.1-0.35 MPa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 MPa |
0.1-0.4 MPa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 MPa |
0.1-0.4 MPa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 MPa |
0.3 MPa |
3000 kg |
2185×1728×2082 |
DHNZ model is applied to dairy skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 MPa |
0.1-0.2 MPa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 MPa |
0.1-0.2 MPa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 MPa |
0.1-0.2 MPa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 MPa |
0.1-0.2 MPa |
2300 kg |
1950×1550×1960 |
Separator Advantages
- Continuous feeding
- High separation factor
- Automatic residue discharging
- CIP (Clean-in-Place)
- Hydraulic coupling driving with longer service life
- PLC system automatic control
- Good milk skimming performance
- High efficiency
- Lower energy consumption
- Soft feeding or discharging of the inlet and outlet
Separator Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
